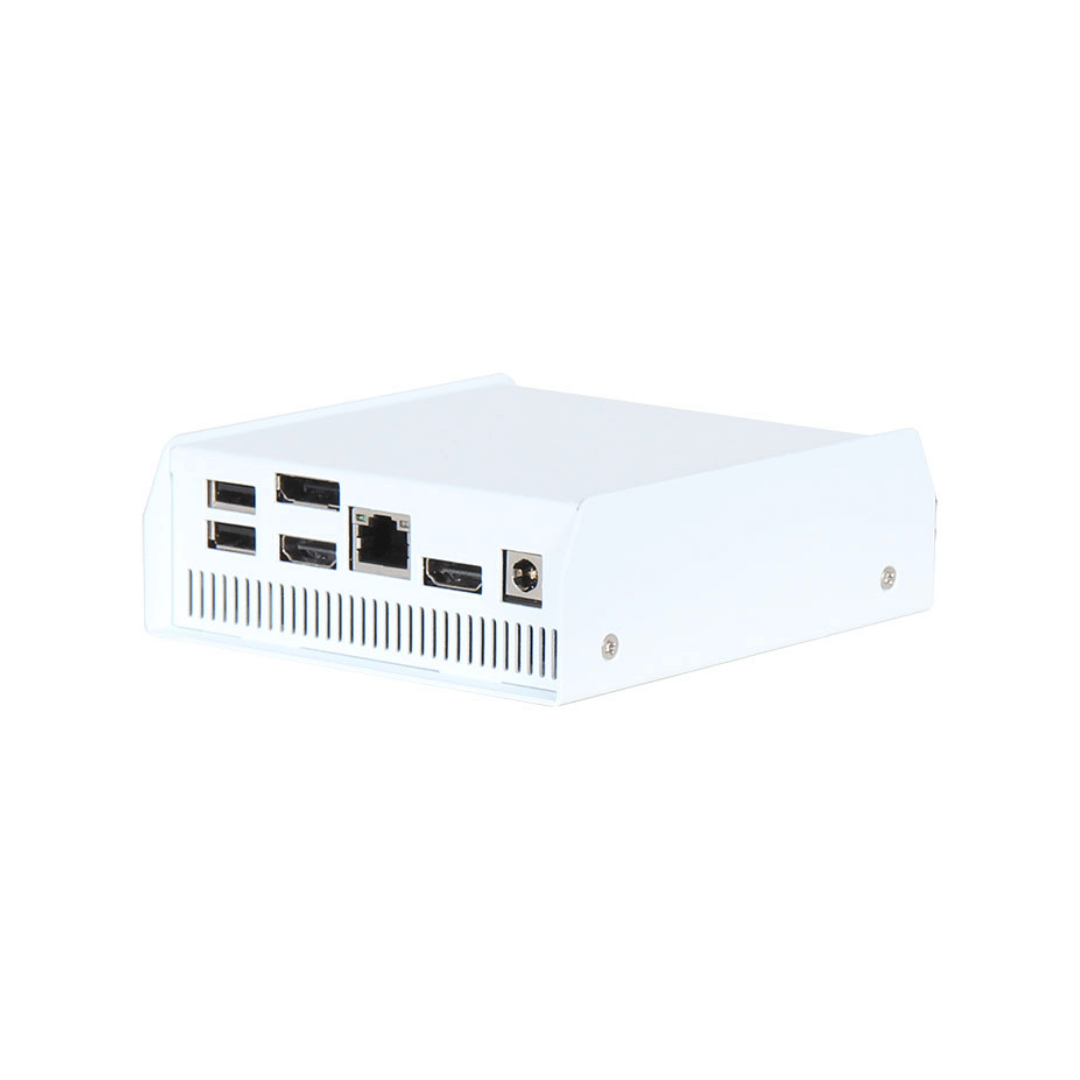

MEDS-2003 PC

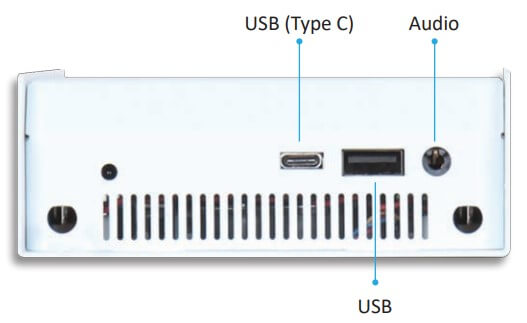

MEDS-2003_front

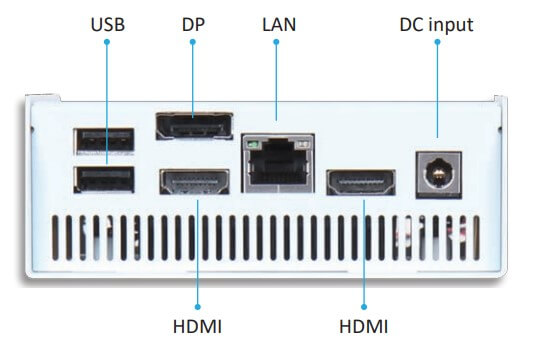

MEDS-2003_back

MEDS-2003 PC

21.5’’ Panel PC PC con processore Intel Atom E-series

Categoria:

MEDS-2003 è basato su Intel® 7th Gen (Kabylake-U) CoreTM i3/ i5 SOC, supporta dual channel DDR4, doppio display e storage SSD fino a 128 GB. È estremamente compatto (113 x 39 x 130 mm) ma dispone di diverse porte I/O, tra cui 3x USB 3.0, 1xUSB 3.1 Type C, 1x LAN, 2x HDMI, 1x DisplayPort.

CPU

i3-7100U, QC, 2.30 GHz, 15 W
GPU

Intel® HD Graphics 520
RAM

2x Dual Channel SO-DIMM DDR4 2133 MHz up to 32GB
Storage

-1x SATA III port
-M.2 SSD 2260 (64/ 128GB)
Expansion Interface

2x M.2
– Key E (Supports 2230)
– Key M (Supports 2260)
H/W Status Monitor

-Temperature (CPU & System)
-Voltage (VCC, VSB, VBAT)
-CPU Fan Speed
Interfaccia I/O

-USB 3x USB 3.0 compliant/ 1x USB 3.1 Type C
-Audio 1x Mic-in, Line-out
-Ethernet 1x Intel i219V 10/100/1000 Mbps W/ RJ45 connector
Interfaccia Display

2x HDMI : Supports max on up to 4Kx2K@30Hz
– 1x DP: Supports max res up to 4096 x 2160@60Hz
Input

19V / 65W DC-In (DC Jack)
Temperatura Operatività

0°C ~ 60°C
Storage Temperature

40°C ~ 85°C
Dimensioni

113(W) x 39(H) x 130(D) mm
